AG-UI: Text Messages, Tool Calls, and Reasoning

Events are the core of AG-UI. When an agent supports AG-UI as its output format, each agent run produces an event stream. The client simply needs to handle each event according to its type.

Events

AG-UI events fall into the following categories:

Category	Description
Lifecycle Events	Monitor the progression of agent runs
Text Message Events	Handle streaming textual content
Tool Call Events	Manage tool executions by agents
State Management Events	Synchronize state between agents and UI
Activity Events	Represent ongoing activity progress
Special Events	Support custom functionality
Draft Events	Proposed events under development

Every event has the following properties:

Property	Description
type	The specific event type identifier
timestamp	Optional timestamp indicating when the event was created
rawEvent	Optional field containing the original event data if transformed

Lifecycle Events

Lifecycle events relate to the lifecycle of an agent run. Each run follows a defined pattern:

1. Begins with a RunStarted event.
2. Contains zero or more optional StepStarted / StepFinished event pairs.
3. Ends with either a RunFinished event (success) or a RunError event (failure).

The diagram below illustrates the lifecycle event flow between the agent and the client.

Text Message Events

Text message events represent the lifecycle of a text message in the conversation. Text messages are transmitted in a streaming fashion, with content delivered incrementally. Transmitting a single text message involves the following events:

1. Begins with a TextMessageStart event.
2. One or more TextMessageContent events, each containing a chunk of the text message.
3. Ends with a TextMessageEnd event.

The diagram below illustrates the text message event flow between the agent and the client.

TextMessageStart

The TextMessageStart event contains messageId and role, representing the message ID and the sender's role respectively.

TextMessageContent

The TextMessageContent event contains messageId identifying the message, and delta representing a chunk of the text message.

TextMessageEnd

The TextMessageEnd event contains only messageId.

Tool Call Events

Tool call events relate to the lifecycle of a tool call. Tool calls follow the same streaming pattern:

1. Begins with a ToolCallStart event.
2. One or more ToolCallArgs events carrying the tool call arguments.
3. Ends with a ToolCallEnd event.

The diagram below illustrates the tool call event flow between the agent and the client.

ToolCallStart

The ToolCallStart event contains the following properties:

Property	Description
toolCallId	Unique identifier for the tool call
toolCallName	Name of the tool being called
parentMessageId	Optional ID of the parent message

ToolCallArgs

The ToolCallArgs event contains toolCallId and delta. delta works the same way as in the TextMessageContent event.

ToolCallEnd

The ToolCallEnd event contains only toolCallId.

ToolCallResult

The ToolCallResult event represents the result of a tool call:

Property	Description
messageId	ID of the conversation message this result belongs to
toolCallId	Matches the ID from the corresponding ToolCallStart event
content	The actual result/output content from the tool execution
role	Optional role identifier, typically "tool" for tool results

Reasoning Events

Reasoning events expose the internal reasoning process of an LLM.

1. Begins with a ReasoningStart event.
2. A ReasoningMessageStart event marks the beginning of a reasoning message.
3. One or more ReasoningMessageContent events carry chunks of the reasoning text.
4. A ReasoningMessageEnd event marks the end of the reasoning message.
5. Ends with a ReasoningEnd event.

The diagram below illustrates the reasoning event flow between the agent and the client.

ReasoningStart

The ReasoningStart event contains only the messageId property.

ReasoningMessageStart

The ReasoningMessageStart event contains messageId and role. The value of role is typically "reasoning".

ReasoningMessageContent

The ReasoningMessageContent event has the same structure as text message events, using delta to represent a chunk of the message text.

ReasoningMessageEnd

The ReasoningMessageEnd event contains only the messageId property.

ReasoningEnd

The ReasoningEnd event contains only the messageId property.

CopilotKit Integration

Text messages, reasoning, and tool calls are the most fundamental aspects of an agent. CopilotKit provides built-in support for all of them:

• The streaming response displayed in the UI when interacting with an agent is the result of handling text message events.
• If the model returns reasoning messages, they are displayed in the UI in a streaming fashion.
• When the model calls a tool, the tool name, input arguments, and return value are shown in the UI.

For agent frontend applications, these out-of-the-box features greatly simplify the integration with AG-UI.

Text Messages

CopilotKit's chat interface streams messages by default.

Tool Calls

Use useDefaultRenderTool in CopilotKit to enable the default tool rendering UI.

Enabling Default Tool Rendering

import { CopilotChat, useDefaultRenderTool } from "@copilotkit/react-core/v2";

function Chat() {
  useDefaultRenderTool();

  return <CopilotChat />;
}

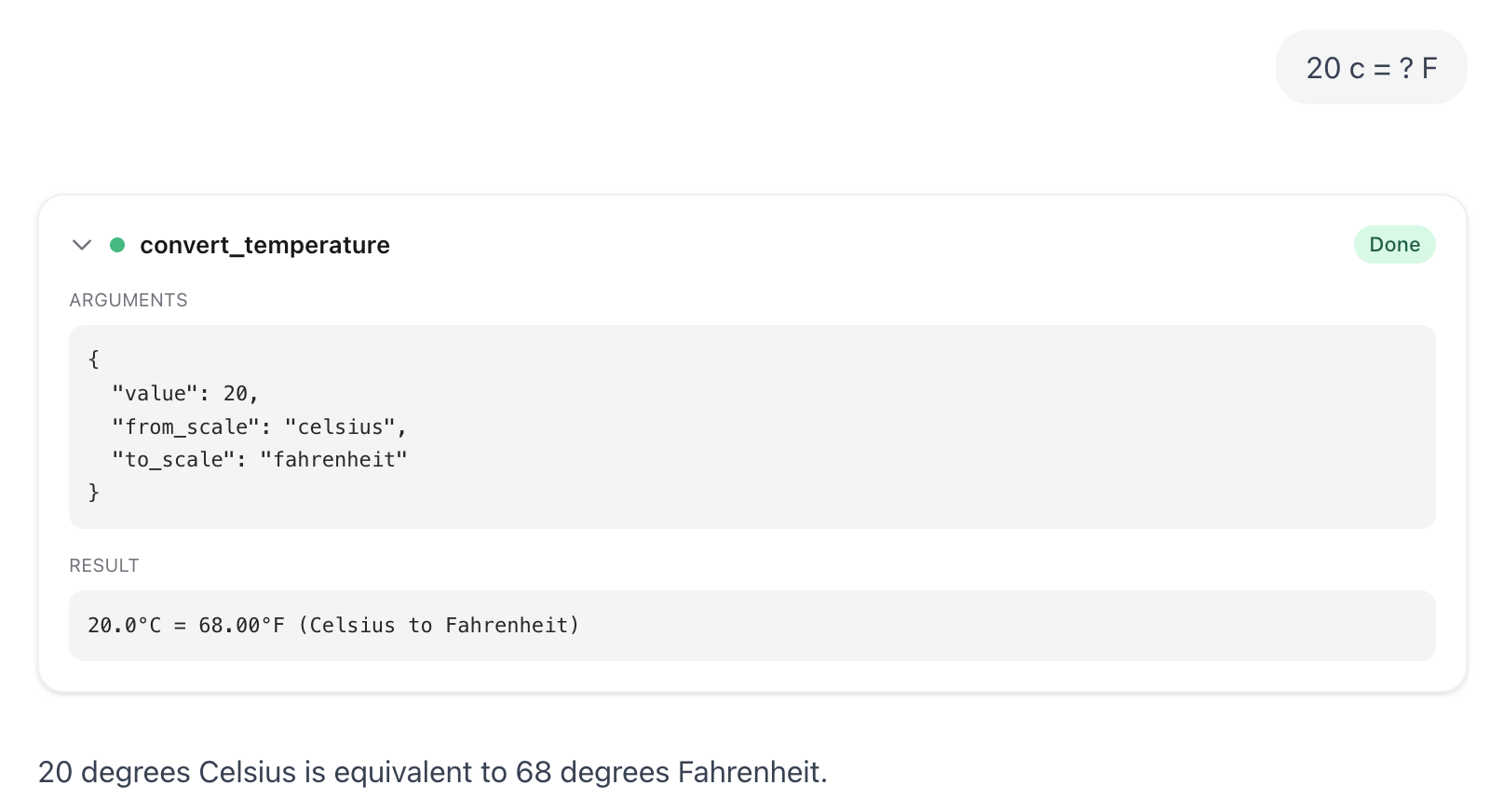

The screenshot below shows how tool calls are rendered in CopilotKit.

Reasoning

To demonstrate AG-UI reasoning events, you need a model that supports reasoning and returns the reasoning process as plain text to the caller.

OpenAI and Anthropic models do not return the full reasoning process as plain text.

The model used here is DeepSeek V4 Flash, accessed via OpenRouter.

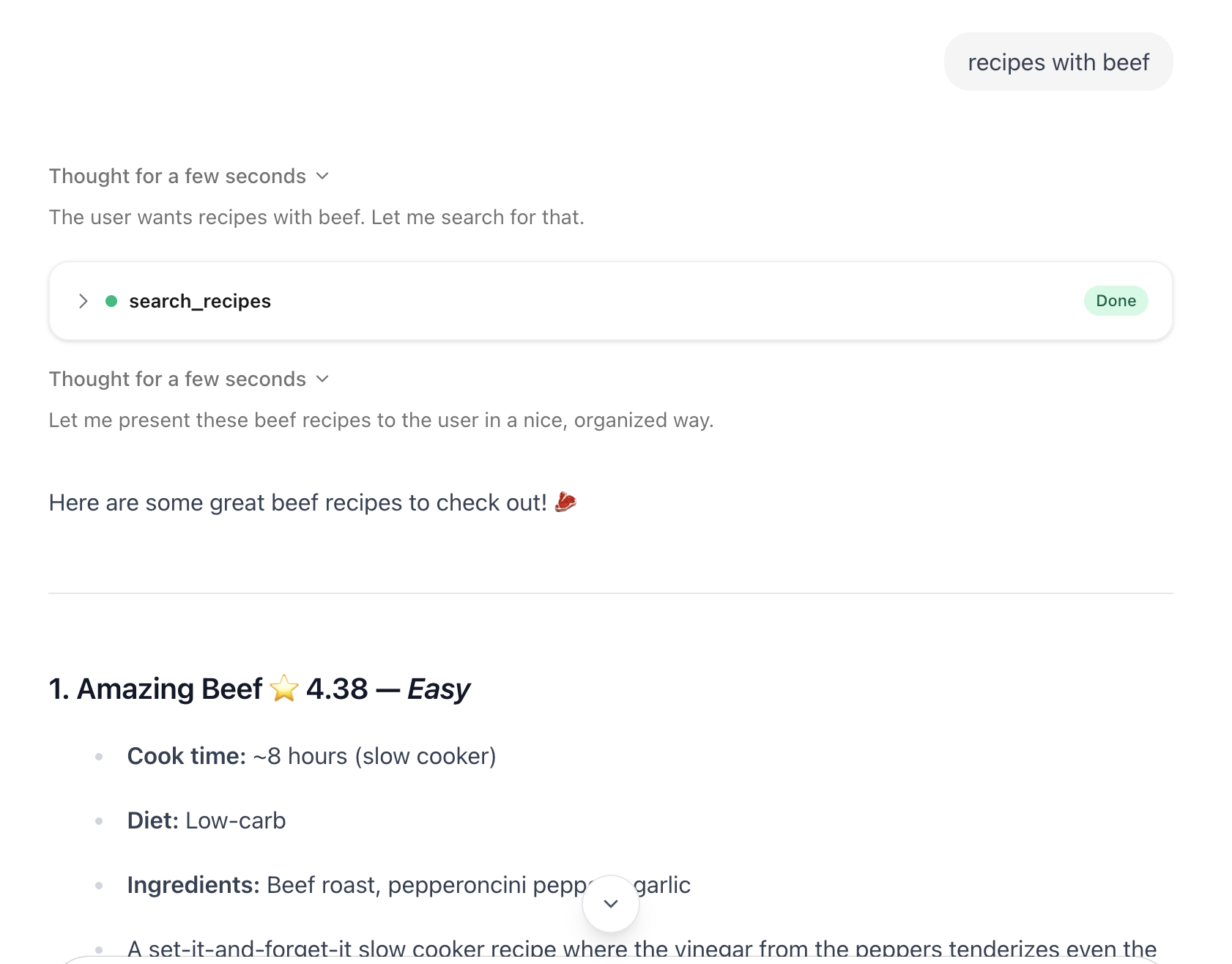

The screenshot below shows how reasoning messages are rendered in CopilotKit.
